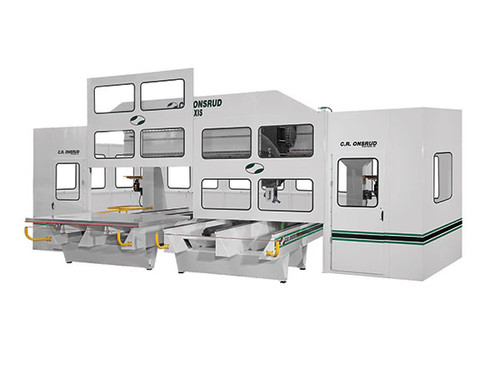

C.R. ONSRUD CNC 5-Axis S-Series

Your Price:
Call Scotty for Quote 678-428-1661
SKU:
CRO-5AXISSS
Weight:
0.00 LBS



Product Description

The 5-Axis S-Series CNC Router by C.R. Onsrud is designed to be a more cost effective 5-Axis CNC machining center solution. The S-Series CNC features a welded steel frame that is heat-treated, stress-relieved and normalized, for unrivaled weight, mass, rigidity, durability, feeds and speeds at this price point. The frame has been designed and checked with industry leading ANSYS FEA software to ensure the most rigid design in its class. The S-Series is designed for those that want to save cost and do not need the extra mass and rigidity of a cast iron bridge or the extra speed and flexibility of a twin table design.

The F122S comes standard with a 12HP, 20,000 RPM spindle, which can be upgraded to a 15HP, 22,000 RPM spindle. The compact 5-Axis spindle design is ideal for trimming composite, thermoformed, and fiberglass parts, along with custom mill work, mold making, or any other application where space may be limited but cut quality is essential.



Standard Features

  • 2 Year Limited Warranty
  • Factory Provided 24/7/365 After Hours Emergency Tech Support
  • Factory Provided Onsite Machine Installation and Training
  • Factory Provided Advanced Technical & Applications Support
  • Factory Provided In Depth Remote Online Diagnostics
  • 6-Pole, reversible, 20,000 RPM High Torque Spindle
  • HSK-63F Spindle Taper and Tool Holders, with 1 inch (25mm) collet capacity
  • Over 24 Inches of Z-Axis Clearance & 29 inches of Z-Axis stroke standard
  • Finite Element Analysis used Extensively in the Engineering Process
  • Thermal Heat Treated, Stress Relieved, & Normalized One-Piece Steel Machine Base
  • Std. 12 Position, Aggregate Ready, Dynamic Automatic Rotary Tool Changer
  • Single Aluminum Moving Table Design for Loading and Unloading Efficeincy
  • Compact Design Saves Valuable Shop Floor Space
  • C.R. Onsrud High-Flow Universal Vacuum Table System with Low Vacuum Sensing
  • Independently Controlled Vacuum Zones
  • Comes Equiped with Choice of Flow Through or Dedicated Spoil Board
  • OSAI 10/510 CNC Controller with Integrated Touch Screen PC (Fanuc option available)
  • 4-Port Ethernet Connection, USB, and Serial Connectivity, for Easy Network Integration
  • Full 3D capability, Helical Interpolation, and Simultanious 5-Axis Motion Standard
  • And many more options or accessories available!

Model Number

F62S

F122S

F146S

Number of Axes

5 Standard (additional available)

Table Size

62" X 61"

122" X 61"

146" X 61"

Approxment Machine Footprint

10' X 20'

10' X 22'

10' X 24'

Z Clearance

24" or 36"

X-Axis Travel

62"

122"

148"

Y-Axis Travel

74"

Z-Axis Travel

29" X 41"

Machine Speed

3000ipm

X&Y Rapid Transverse

4200ipm

Number of Spindles

1 Standard

Standard Spindle

12HP; 6-Pole; 20,000rpm

Tool Shank

HSK 63F

Standard Tool Capacity

12

Vacuum Zones

1

2
